Redis
This integration is enabled by default.
Versions supported: > v2
This integration uses a standalone exporter that is available in UBI or scratch base image.
This integration has 34 metrics.
Timeseries generated: 150 series per instance
List of Alerts
| Alert | Description | Format |
|---|---|---|
| [Redis] Low UpTime | Uptime of less than 1 hour in a redis instance | Prometheus |
| [Redis] High Memory Usage | High memory usage | Prometheus |
| [Redis] High Clients Usage | High client connections usage | Prometheus |
| [Redis] High Response Time | Response time over 250ms | Prometheus |
| [Redis] High Fragmentation Ratio | High fragmentation ratio | Prometheus |
| [Redis] High Keys Eviction Ratio | High keys eviction ratio | Prometheus |
| [Redis] Recurrent Rejected Connections | Recurrent rejected connections | Prometheus |
| [Redis] Low Hit Ratio | Low keyspace hit ratio | Prometheus |
| [Redis] Exporter Process Down | Exporter process is not serving metrics | Prometheus |
List of Dashboards

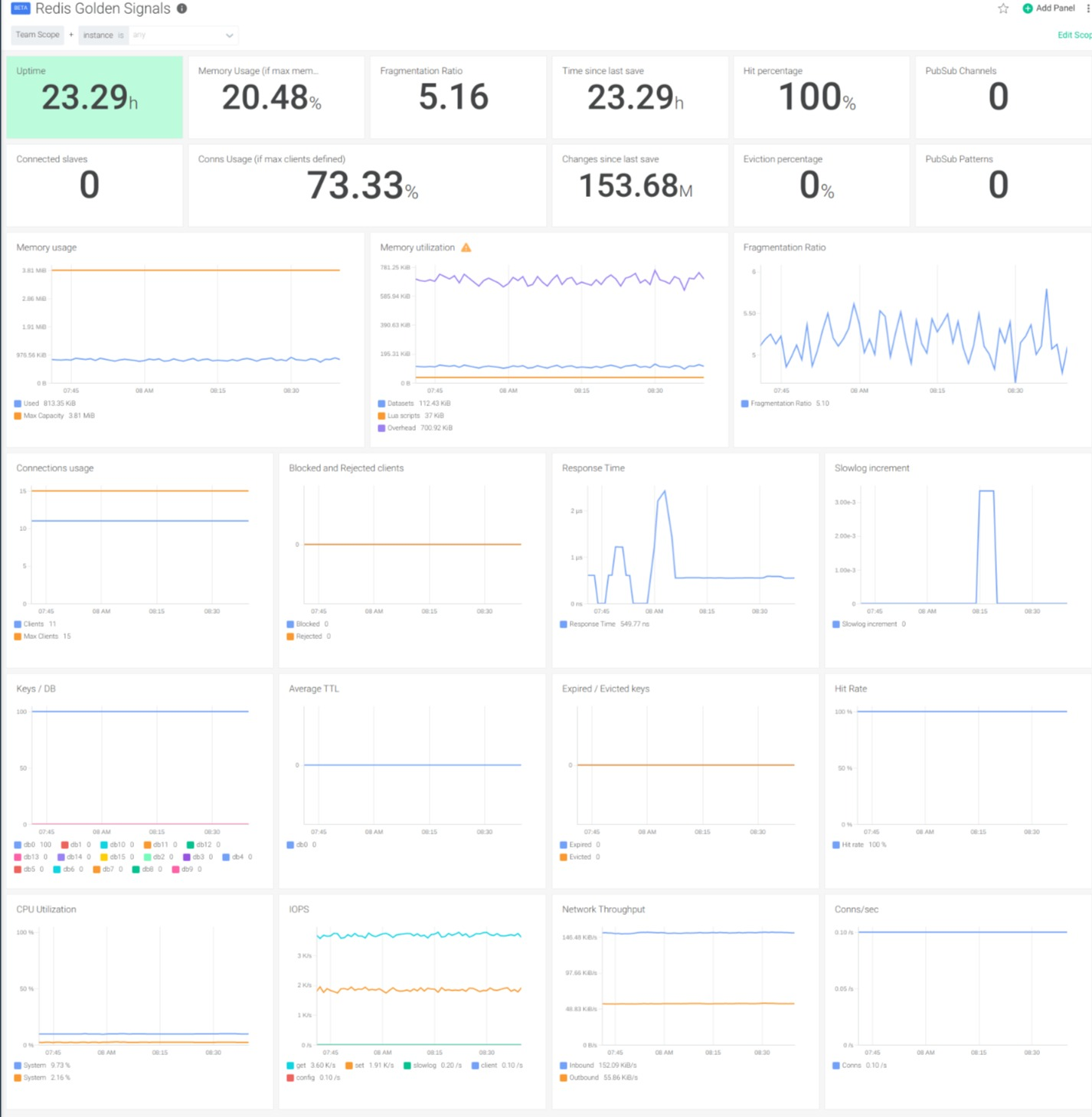

Redis
The dashboard provides information on the status, error rate, latency, traffic and resource usage of a Redis instance.
List of Metrics
| Metric name |
|---|
| redis_blocked_clients |
| redis_commands_duration_seconds_total |
| redis_commands_processed_total |
| redis_commands_total |
| redis_config_maxclients |
| redis_connected_clients |
| redis_connected_slaves |
| redis_connections_received_total |
| redis_cpu_sys_children_seconds_total |
| redis_cpu_sys_seconds_total |
| redis_cpu_user_children_seconds_total |
| redis_cpu_user_seconds_total |
| redis_db_avg_ttl_seconds |
| redis_db_keys |
| redis_evicted_keys_total |
| redis_expired_keys_total |
| redis_keyspace_hits_total |
| redis_keyspace_misses_total |
| redis_mem_fragmentation_ratio |
| redis_memory_max_bytes |
| redis_memory_used_bytes |
| redis_memory_used_dataset_bytes |
| redis_memory_used_lua_bytes |
| redis_memory_used_overhead_bytes |
| redis_memory_used_scripts_bytes |
| redis_net_input_bytes_total |
| redis_net_output_bytes_total |
| redis_pubsub_channels |
| redis_pubsub_patterns |
| redis_rdb_changes_since_last_save |
| redis_rdb_last_save_timestamp_seconds |
| redis_rejected_connections_total |
| redis_slowlog_length |
| redis_uptime_in_seconds |
Prerequisites
Basic Authentication
Follow these steps if your Redis server requires user and password authentication
1.- Create a user and password in your Redis instance for the exporter.
ACL SETUSER USERNAME +client +ping +info +config|get +cluster|info +slowlog +latency +memory +select +get +scan +xinfo +type +pfcount +strlen +llen +scard +zcard +hlen +xlen +eval allkeys on >PASSWORD
Replace USERNAME and PASSWORD with yours for the Redis instance.
2.- Create a secret with the user and password for the exporter. Keep the following in mind:
- It has to be in the same namespace where the exporter will be deployed.
- Use the same user name and password that you used for the api in the previous step.
- You can change the name of the secret. If you do it, you will need to select it in the next steps of the integration.
kubectl create secret -n Your-Application-Namespace generic redis-exporter-auth \
--from-literal=user=USER \
--from-literal=password=PASSWORD
Replace USER and PASSWORD with yours for the Redis instance.
Installation
An automated wizard is present in the Monitoring Integrations in Sysdig Monitor. Expert users can also use the Helm chart for installation: https://github.com/sysdiglabs/integrations-charts/tree/main/charts/redis-exporter
Related Blog Posts
Agent Configuration
The default agent job for this integration is as follows:
- job_name: redis-default
tls_config:
insecure_skip_verify: true
kubernetes_sd_configs:
- role: pod
relabel_configs:
- action: keep
source_labels: [__meta_kubernetes_pod_host_ip]
regex: __HOSTIPS__
- action: keep
source_labels:
- __meta_kubernetes_pod_annotation_promcat_sysdig_com_integration_type
regex: "redis"
- source_labels: [__meta_kubernetes_pod_phase]
action: keep
regex: Running
- action: replace
source_labels: [__meta_kubernetes_pod_annotation_promcat_sysdig_com_target_ns]
target_label: kube_namespace_name
- action: replace
source_labels: [__meta_kubernetes_pod_annotation_promcat_sysdig_com_target_workload_type]
target_label: kube_workload_type
- action: replace
source_labels: [__meta_kubernetes_pod_annotation_promcat_sysdig_com_target_workload_name]
target_label: kube_workload_name
- action: replace
replacement: true
target_label: sysdig_omit_source
- action: replace
source_labels: [__address__, __meta_kubernetes_pod_annotation_promcat_sysdig_com_port]
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
target_label: __address__
- action: replace
source_labels: [__meta_kubernetes_pod_uid]
target_label: sysdig_k8s_pod_uid
- action: replace
source_labels: [__meta_kubernetes_pod_container_name]
target_label: sysdig_k8s_pod_container_name
