Rancher RKE2 Kube Proxy
Metrics, Dashboards, Alerts and more for Rancher RKE2 Kube Proxy Integration in Sysdig Monitor.
This integration is disabled by default. See Enable and Disable Integrations to enable it in your account.
This integration is out-of-the-box, so it doesn’t require any exporter.
This integration has 35 metrics.
Timeseries generated: 1.5K TS
List of Alerts
| Alert | Description | Format |
|---|---|---|
| [Rancher RKE2 Kube Proxy] Kube Proxy Down | KubeProxy detected down | Prometheus |
| [Rancher RKE2 Kube Proxy] High Rest Client Latency | High Rest Client Latency detected | Prometheus |
| [Rancher RKE2 Kube Proxy] High Rule Sync Latency | High Rule Sync Latency detected | Prometheus |
| [Rancher RKE2 Kube Proxy] Too Many 500 Code | Too Many 500 Code detected | Prometheus |
List of Dashboards
Rancher RKE2 Kube Proxy
If you are using Prometheus Remote Write you will need to add the following metric relabel config for this label.
- action: replace
source_labels: [ __address__ ]
target_label: _sysdig_integration_rke2_kube_proxy
replacement: true

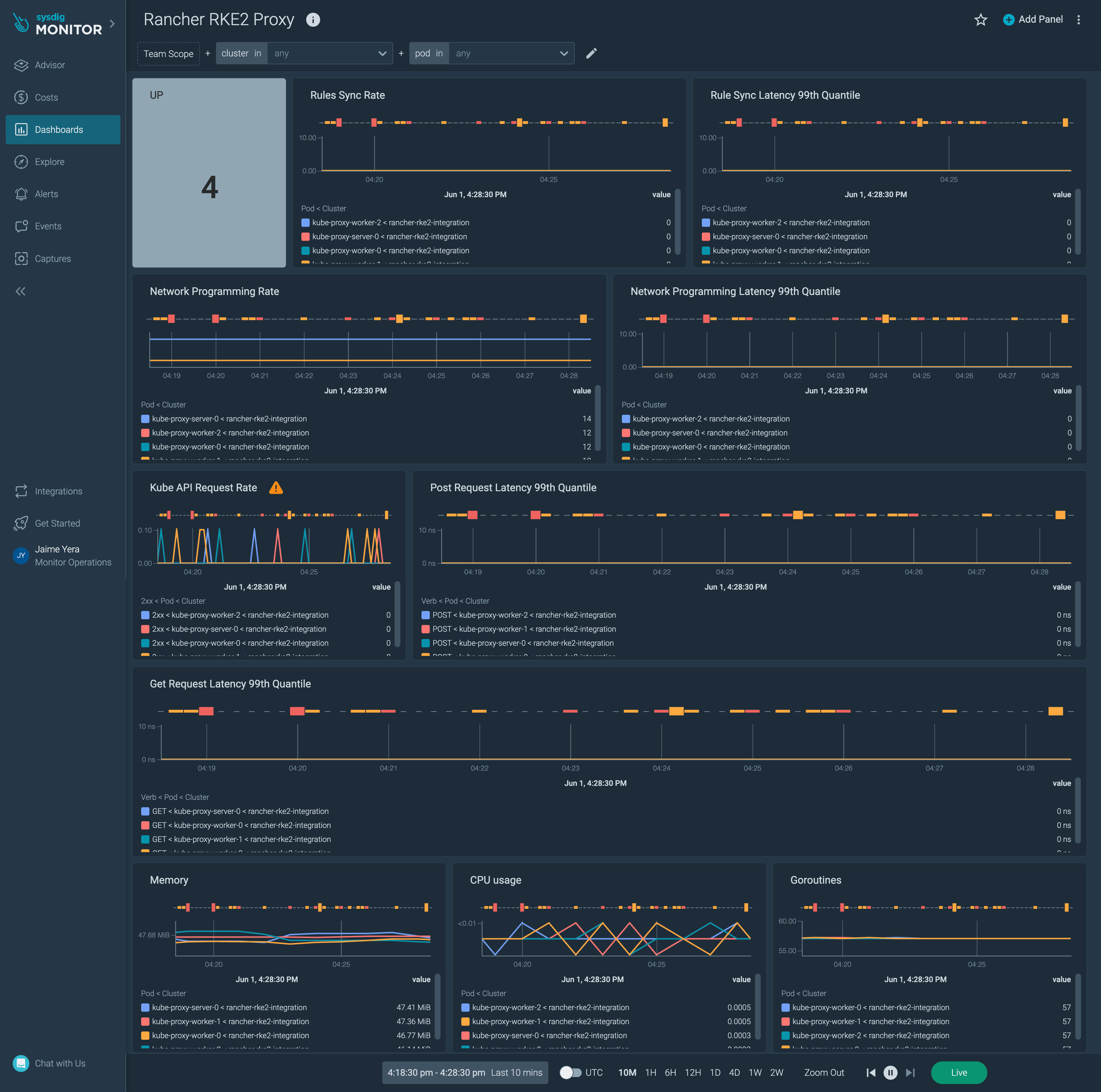

The dashboard provides information on the RKE2 Proxy.
List of Metrics
| Metric name |
|---|
| go_build_info |
| go_gc_duration_seconds |
| go_gc_duration_seconds_count |
| go_gc_duration_seconds_sum |
| go_goroutines |
| go_info |
| go_memstats_buck_hash_sys_bytes |
| go_memstats_gc_sys_bytes |
| go_memstats_heap_alloc_bytes |
| go_memstats_heap_idle_bytes |
| go_memstats_heap_inuse_bytes |
| go_memstats_heap_released_bytes |
| go_memstats_heap_sys_bytes |
| go_memstats_lookups_total |
| go_memstats_mallocs_total |
| go_memstats_mcache_inuse_bytes |
| go_memstats_mcache_sys_bytes |
| go_memstats_mspan_inuse_bytes |
| go_memstats_mspan_sys_bytes |
| go_memstats_next_gc_bytes |
| go_memstats_stack_inuse_bytes |
| go_memstats_stack_sys_bytes |
| go_memstats_sys_bytes |
| go_threads |
| kube_node_info |
| kubeproxy_network_programming_duration_seconds_bucket |
| kubeproxy_network_programming_duration_seconds_count |
| kubeproxy_sync_proxy_rules_duration_seconds_bucket |
| kubeproxy_sync_proxy_rules_duration_seconds_count |
| process_cpu_seconds_total |
| process_max_fds |
| process_open_fds |
| process_resident_memory_bytes |
| rest_client_request_duration_seconds_bucket |
| rest_client_requests_total |
Prerequisites
None.
Installation
Installing an exporter is not required for this integration.
Agent Configuration
The default agent job for this integration is as follows:
- job_name: rancher-rke2-kube-proxy-default
honor_labels: true
kubernetes_sd_configs:
- role: pod
relabel_configs:
- action: keep
source_labels: [__meta_kubernetes_pod_host_ip]
regex: __HOSTIPS__
- source_labels: [__meta_kubernetes_pod_phase]
action: keep
regex: Running
- action: keep
source_labels:
- __meta_kubernetes_namespace
- __meta_kubernetes_pod_name
separator: '/'
regex: 'kube-system/kube-proxy.+'
- replacement: localhost:10249
target_label: __address__
- source_labels:
- __meta_kubernetes_pod_name
action: replace
target_label: instance
- action: labelmap
regex: __meta_kubernetes_pod_label_(.+)
- action: replace
source_labels: [__meta_kubernetes_pod_uid]
target_label: sysdig_k8s_pod_uid
- action: replace
source_labels: [__meta_kubernetes_pod_container_name]
target_label: sysdig_k8s_pod_container_name
- action: replace
source_labels: [ __address__ ]
target_label: _sysdig_integration_rke2_kube_proxy
replacement: true
