OpenShift Kubelet

Metrics, Dashboards, Alerts and more for OpenShift Kubelet Integration in Sysdig Monitor.
OpenShift Kubelet

This integration is disabled by default. See Enable and Disable Integrations to enable it in your account.

Versions supported: > v4.7

This integration is out-of-the-box, so it doesn’t require any exporter.

This integration has 25 metrics.

Timeseries generated: Kubelet generates ~1200 timeseries per node

List of Alerts

AlertDescriptionFormat
[openshift-kubelet] Kubelet Too Many PodsKubelet Too Many PodsPrometheus
[openshift-kubelet] Kubelet Pod Lifecycle Event Generator Duration HighKubelet Pod Lifecycle Event Generator Duration HighPrometheus
[openshift-kubelet] Kubelet Pod StartUp Latency HighKubelet Pod StartUp Latency HighPrometheus
[openshift-kubelet] Kubelet DownKubelet DownPrometheus

List of Dashboards

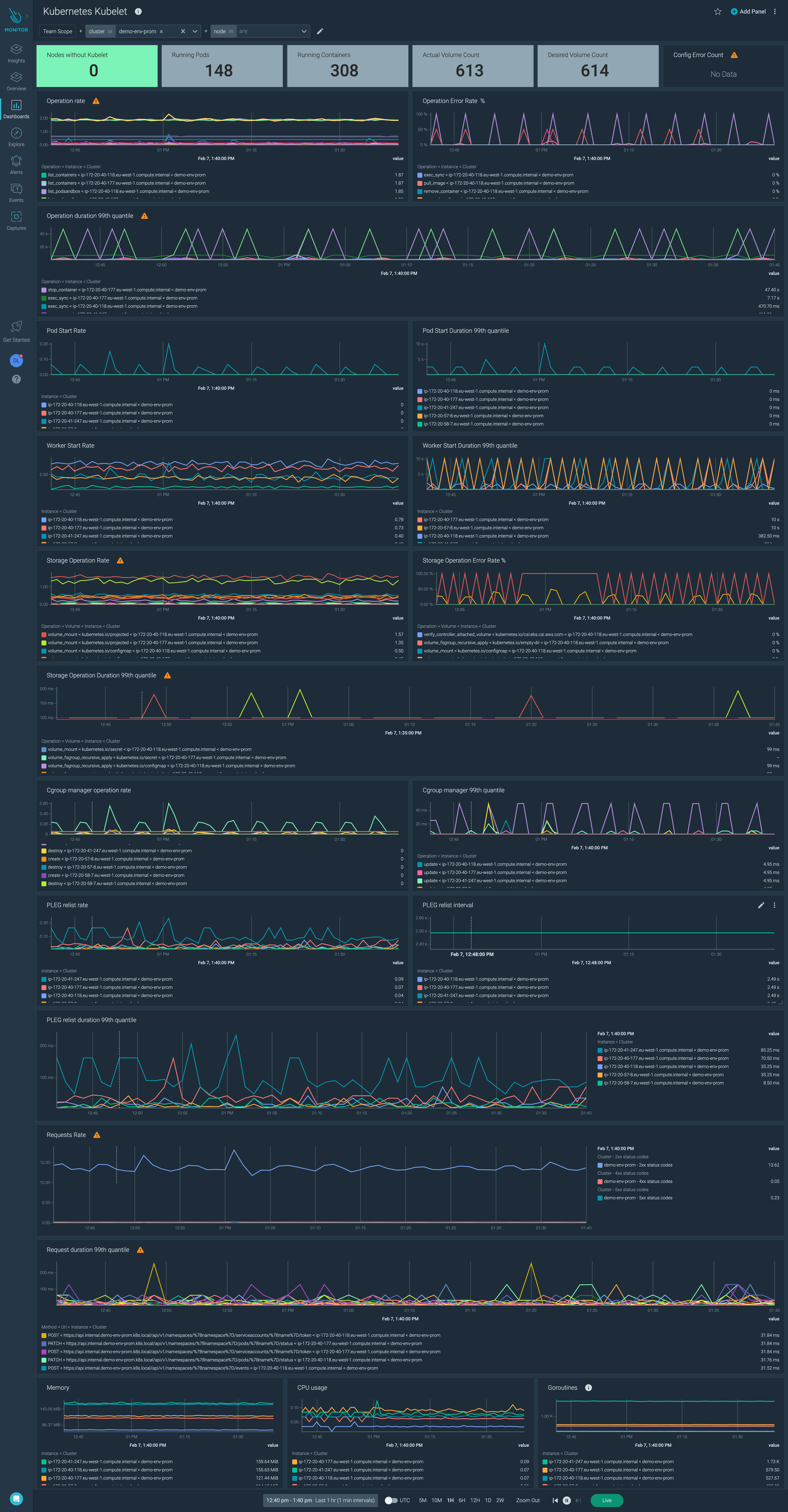

OpenShift v4 Kubelet

The dashboard provides information on the OpenShift Kubelet. OpenShift v4 Kubelet

List of Metrics

Metric name
go_goroutines
kube_node_status_capacity_pods
kube_node_status_condition
kubelet_cgroup_manager_duration_seconds_bucket
kubelet_cgroup_manager_duration_seconds_count
kubelet_node_config_error
kubelet_pleg_relist_duration_seconds_bucket
kubelet_pleg_relist_interval_seconds_bucket
kubelet_pod_start_duration_seconds_bucket
kubelet_pod_start_duration_seconds_count
kubelet_pod_worker_duration_seconds_bucket
kubelet_pod_worker_duration_seconds_count
kubelet_running_containers
kubelet_running_pod_count
kubelet_running_pods
kubelet_runtime_operations_duration_seconds_bucket
kubelet_runtime_operations_errors_total
kubelet_runtime_operations_total
process_cpu_seconds_total
process_resident_memory_bytes
rest_client_request_duration_seconds_bucket
rest_client_requests_total
storage_operation_duration_seconds_bucket
storage_operation_duration_seconds_count
volume_manager_total_volumes

Prerequisites

None.

Installation

Installing an exporter is not required for this integration.

Agent Configuration

This integration has no default agent job.
