NVIDIA

Metrics, Dashboards, Alerts and more for NVIDIA Integration in Sysdig Monitor.

This integration is enabled by default.

This integration is out-of-the-box, so it doesn’t require any exporter.

This integration has 14 metrics.

List of Alerts

Alert	Description	Format
[Nvidia] Gpu Temperature Too High	GPU temperature exceeded the configured threshold. Risk of thermal throttling or hardware damage.	Prometheus
[Nvidia] Gpu Memory Exhaustion	GPU VRAM usage exceeded the configured threshold. The device is at risk of out-of-memory errors.	Prometheus
[Nvidia] Gpu Underutilization	GPU utilization has been below the configured threshold for too much time. The device may be idle or misconfigured.	Prometheus

List of Dashboards

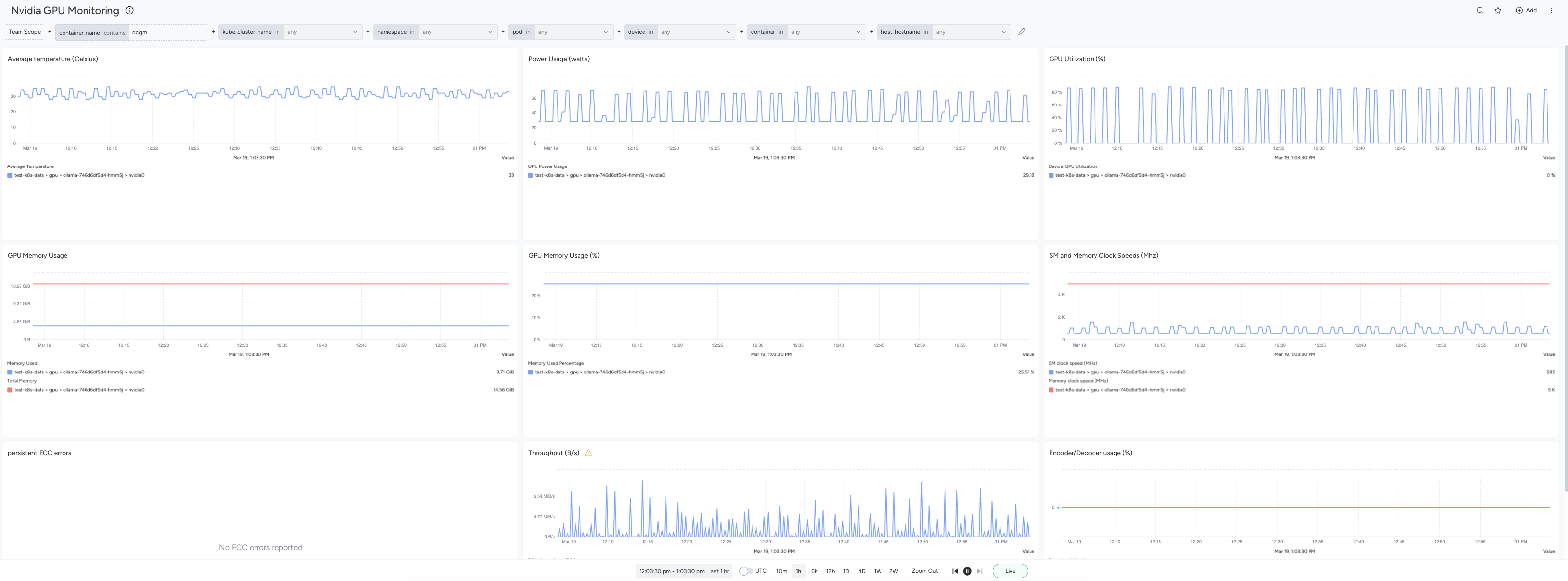

Nvidia GPU Monitoring

The dashboard provides information on the status and usage of NVIDIA GPUs. Nvidia GPU Monitoring

List of Metrics

Metric name
DCGM_FI_DEV_DEC_UTIL
DCGM_FI_DEV_ENC_UTIL
DCGM_FI_DEV_FB_FREE
DCGM_FI_DEV_FB_USED
DCGM_FI_DEV_GPU_TEMP
DCGM_FI_DEV_GPU_UTIL
DCGM_FI_DEV_MEM_CLOCK
DCGM_FI_DEV_POWER_USAGE
DCGM_FI_DEV_SM_CLOCK
DCGM_FI_PROF_NVLINK_RX_BYTES
DCGM_FI_PROF_NVLINK_TX_BYTES
DCGM_FI_PROF_PCIE_RX_BYTES
DCGM_FI_PROF_PCIE_TX_BYTES
kube_node_labels

Prerequisites

None.

Installation

Installing an exporter is not required for this integration.

Agent Configuration

The default agent job for this integration is as follows:

- job_name: nvidia-metrics
  scrape_interval: 30s
  kubernetes_sd_configs:
    - role: pod
  relabel_configs:
    - action: keep
      source_labels: [__meta_kubernetes_pod_host_ip]
      regex: __HOSTIPS__
    - source_labels: [__meta_kubernetes_pod_container_name]
      action: keep
      regex: '.*dcgm-exporter'
    - action: replace
      source_labels: [__meta_kubernetes_pod_uid]
      target_label: sysdig_k8s_pod_uid
    - action: replace
      source_labels: [__meta_kubernetes_pod_container_name]
      target_label: sysdig_k8s_pod_container_name
