Kubernetes CoreDNS

Metrics, Dashboards, Alerts and more for Kubernetes CoreDNS Integration in Sysdig Monitor.
Kubernetes CoreDNS

This integration is enabled by default.

This integration is out-of-the-box, so it doesn’t require any exporter.

This integration has 38 metrics.

List of Alerts

AlertDescriptionFormat
[CoreDNS] Error HighHigh Request DurationPrometheus
[CoreDNS] Latency HighLatency HighPrometheus

List of Dashboards

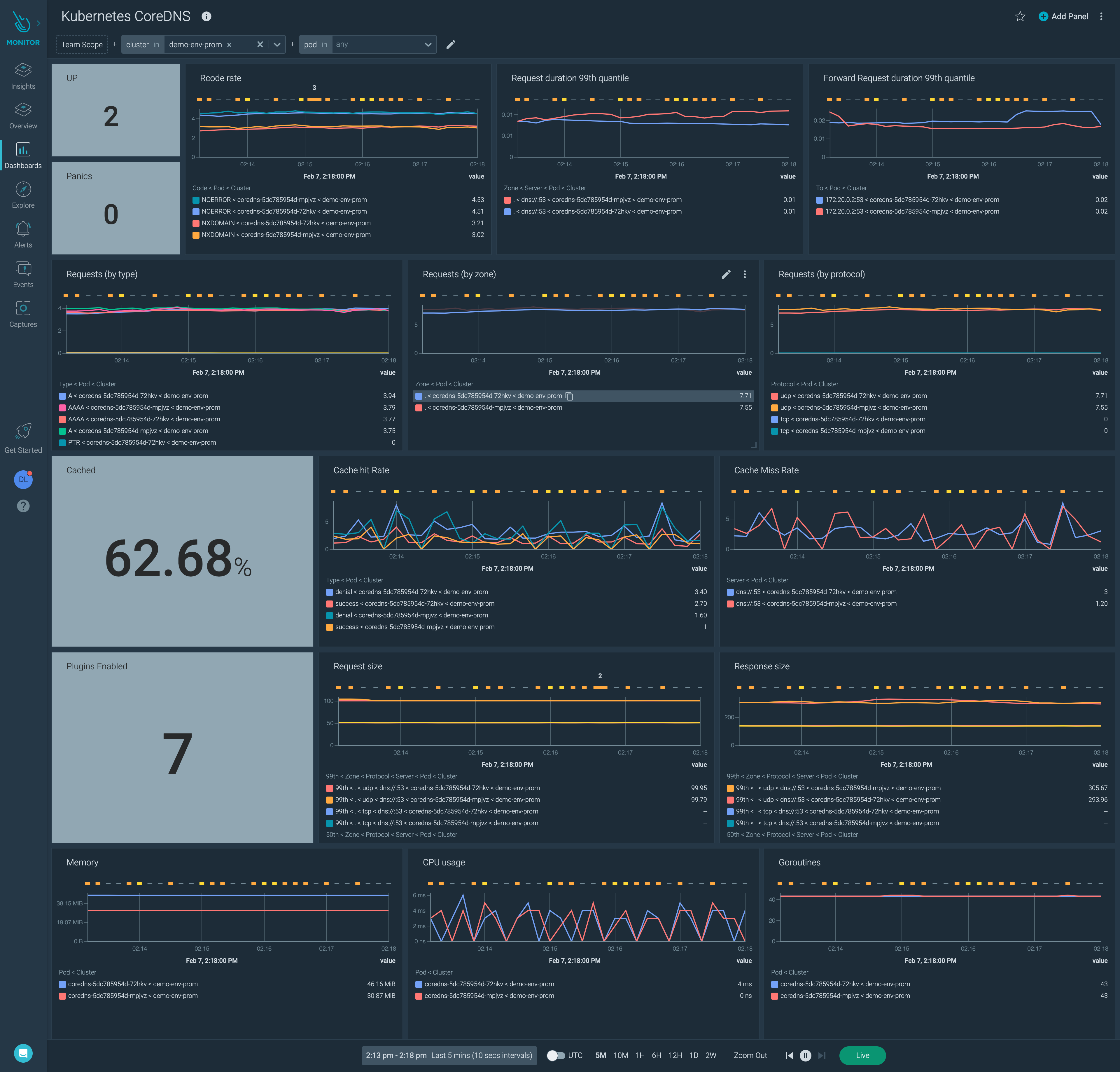

Kubernetes CoreDNS

The dashboard provides information on the Kubernetes CoreDNS. Kubernetes CoreDNS

List of Metrics

Metric name
coredns_cache_hits_total
coredns_cache_misses_total
coredns_dns_request_duration_seconds_bucket
coredns_dns_request_size_bytes_bucket
coredns_dns_requests_total
coredns_dns_response_size_bytes_bucket
coredns_dns_responses_total
coredns_forward_request_duration_seconds_bucket
coredns_panics_total
coredns_plugin_enabled
go_build_info
go_gc_duration_seconds
go_gc_duration_seconds_count
go_gc_duration_seconds_sum
go_goroutines
go_info
go_memstats_buck_hash_sys_bytes
go_memstats_gc_sys_bytes
go_memstats_heap_alloc_bytes
go_memstats_heap_idle_bytes
go_memstats_heap_inuse_bytes
go_memstats_heap_released_bytes
go_memstats_heap_sys_bytes
go_memstats_lookups_total
go_memstats_mallocs_total
go_memstats_mcache_inuse_bytes
go_memstats_mcache_sys_bytes
go_memstats_mspan_inuse_bytes
go_memstats_mspan_sys_bytes
go_memstats_next_gc_bytes
go_memstats_stack_inuse_bytes
go_memstats_stack_sys_bytes
go_memstats_sys_bytes
go_threads
process_cpu_seconds_total
process_max_fds
process_open_fds
process_resident_memory_bytes

Prerequisites

None.

Installation

Installing an exporter is not required for this integration.

Agent Configuration

The default agent job for this integration is as follows:

- job_name: kube-dns-default
  honor_labels: true
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - action: keep
    source_labels: [__meta_kubernetes_pod_host_ip]
    regex: __HOSTIPS__
  - source_labels: [__meta_kubernetes_pod_phase]
    action: keep
    regex: Running
  - action: keep
    source_labels:
    - __meta_kubernetes_namespace
    - __meta_kubernetes_pod_name
    separator: '/'
    regex: 'kube-system/coredns.+'
  - source_labels:
    - __address__
    action: keep
    regex: (.*:9153)
  - source_labels:
    - __meta_kubernetes_pod_name
    action: replace
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - action: replace
    source_labels: [__meta_kubernetes_pod_uid]
    target_label: sysdig_k8s_pod_uid
  - action: replace
    source_labels: [__meta_kubernetes_pod_container_name]
    target_label: sysdig_k8s_pod_container_name
